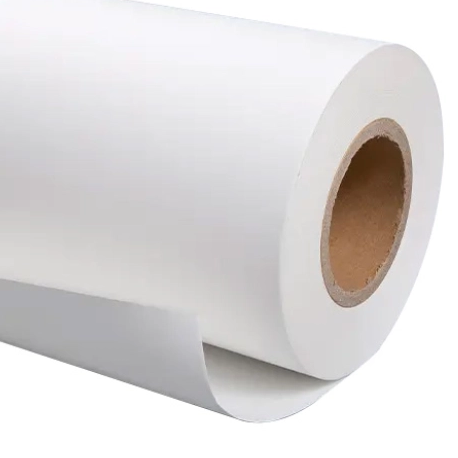

90gsm silicone-coated glassine release paper

90gsm Glassine Release Paper

90gsm glassine backing for reviewing dimensional support and optical-detection needs.

Product Name:
Glassine Release Paper
Size:
Roll
Specification:
90gsm
Color:
White/Blue/yellow/Havana
Release Agent:
Silicone Coated
Base Paper Type:
Wood Pulp
Applications:
Label/Medical/Construction/Textile/Industry/Tape /Electronic/Graphic

Availability:



Inquire

90gsm Glassine Release Paper 90gsm glassine release liner Glassine Silicone Release Paper

Overview

Specifications

Product Guide

FAQs

Product Overview

HENGMU 90gsm Glassine Release Paper provides a weight-specific backing option for self-adhesive labels and converted adhesive components. The glassine substrate supports the construction, while the silicone interface is selected against the required separation. Buyers comparing it with lighter grades should identify the backing requirement, die-cut pattern and dispensing arrangement. Check the chosen color's suitability for inspection or detection and specify the reel dimensions with the adhesive-contact face.

The 90gsm model supplies a defined glassine backing reference.
Directional properties allow comparison with lighter paper grades.
The silicone face is selected against the intended adhesive.
Optical detection can be evaluated with the requested paper color.

Key Specifications

Item	Specification
Product Type	Glassine Release Paper
Basis Weight	90 ± 4 g/m² \| ISO 536
Thickness	75 ± 5 μm \| ISO 534
Base Paper	Glassine paper
Material Structure	Glassine base paper / solventless silicone
Color	White / yellow / honey / Havana / blue; availability by configuration
Form	Reels
Release Coating	Solventless silicone
Coating Sides	Identify the ordered release face or faces in the quotation
Available Width	Specify required slit width, tolerance and roll format in the inquiry
Release Force	Select an adhesive-specific target and test method; release levels are not assigned by weight or thickness
Tensile Strength	MD ≥70 / CD ≥50 N/15mm \| ISO 1924-2
Tearing Strength	MD ≥350 / CD ≥450 mN \| ISO 1974
Transparency / Translucency	Inspect the selected color and actual sample; no numerical optical limit stated
Printability	Gravure / flexo listed; confirm print face and ink system
Die-cutting Performance	Validate die-cut depth, matrix stripping and dispensing on the intended line

Applications

Evaluate 90gsm glassine for labels and adhesive components requiring its backing dimensions. Include die-cut patterns and dispensing edges; graphic applications also need surface-mark and adhesive checks.
Customization

Specify the cutting pattern, dispensing arrangement and colour preference. Add slit width, core, reel limits and contact-face requirements, with the release specification for your adhesive.
Selection Guide

Compare 90gsm with the incumbent backing using fixed tooling and dispensing conditions. Check cut depth and colour-dependent sensor readings, separating material effects from adhesive or machine changes.
Quality & Documents

Obtain the 90gsm dimensional and directional-strength specification. Keep sensor, cutting and peel results with the trial-roll identity and the machine settings used for approval.
Packaging & Delivery

At 1 metric ton minimum, shipment is within one month. Confirm reel geometry, winding direction and destination before agreeing wrapping and pallet dimensions.
Technical Support

Ask about 90gsm glassine samples. Share the current material, die-cut pattern, dispensing edge, adhesive, release method, chosen colour, roll dimensions and required trial quantity.

Applications

Evaluate 90gsm glassine for labels and adhesive components requiring its backing dimensions. Include die-cut patterns and dispensing edges; graphic applications also need surface-mark and adhesive checks.
Customization

Specify the cutting pattern, dispensing arrangement and colour preference. Add slit width, core, reel limits and contact-face requirements, with the release specification for your adhesive.
Selection Guide

Compare 90gsm with the incumbent backing using fixed tooling and dispensing conditions. Check cut depth and colour-dependent sensor readings, separating material effects from adhesive or machine changes.
Quality & Documents

Obtain the 90gsm dimensional and directional-strength specification. Keep sensor, cutting and peel results with the trial-roll identity and the machine settings used for approval.
Packaging & Delivery

At 1 metric ton minimum, shipment is within one month. Confirm reel geometry, winding direction and destination before agreeing wrapping and pallet dimensions.
Technical Support

Ask about 90gsm glassine samples. Share the current material, die-cut pattern, dispensing edge, adhesive, release method, chosen colour, roll dimensions and required trial quantity.

FAQs

What is the practical difference between 80gsm and 90gsm glassine?

The listed caliper rises from 65 ± 5μm to 75 ± 5μm, and MD/CD tensile minima change from 60/40 to 70/50 N/15mm. Confirm whether those differences address the problem in your finished web.
Will the selected color work with my optical sensor?

Test the actual sample with the sensor and settings used on the line. No numerical optical limit is assigned here, and the appearance of one color cannot establish performance for another.
90gsm Glassine: Does a successful manual peel approve an alternative grade?

A hand peel is only preliminary screening. Evaluate the relevant converting operations and the finished construction with recorded settings before accepting the alternative for production.
90gsm Glassine: How should coating orientation appear in a purchase specification?

Use an agreed face description and winding reference, identifying which surface meets each adhesive contact. Resolve ambiguities in the technical review before the roll is ordered.
