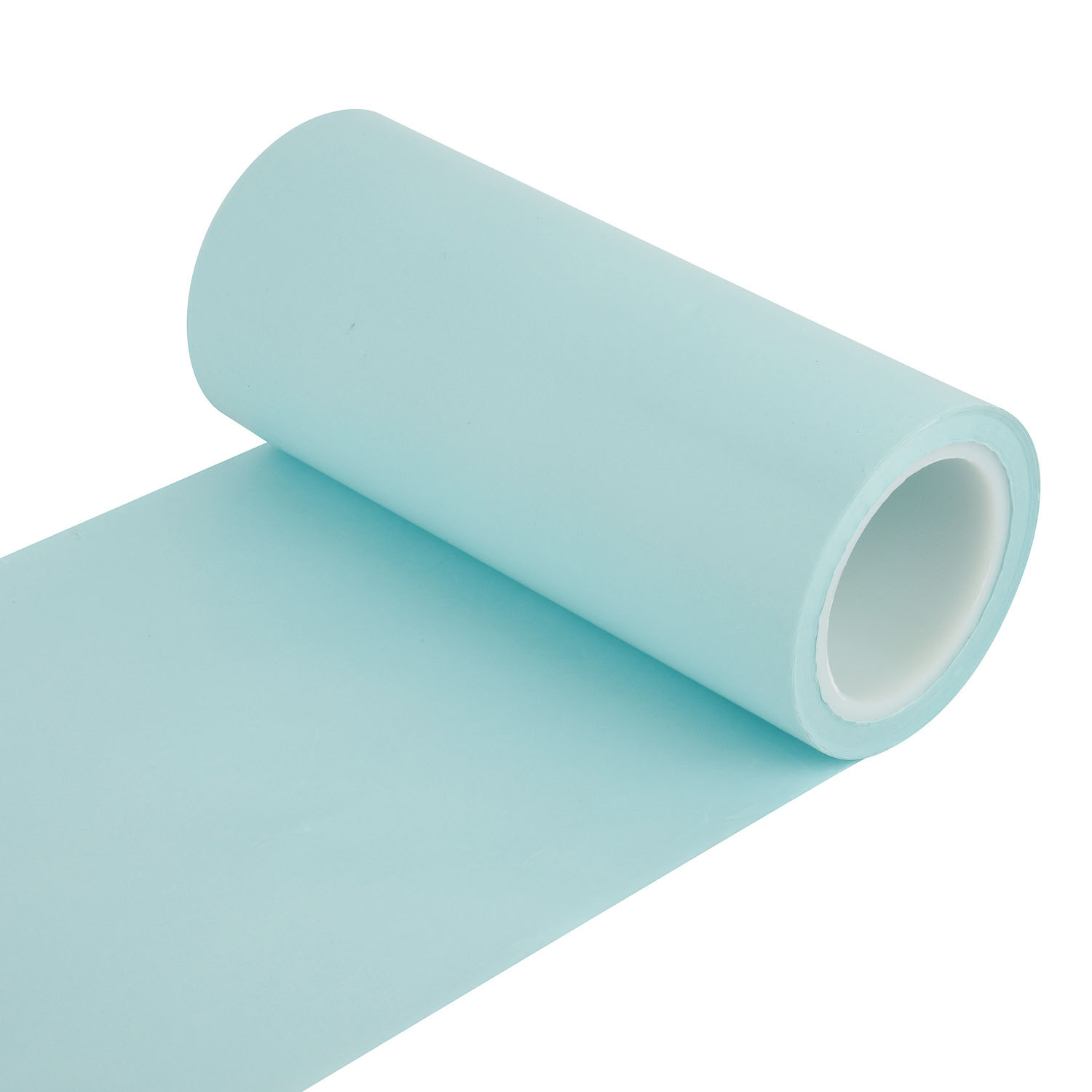

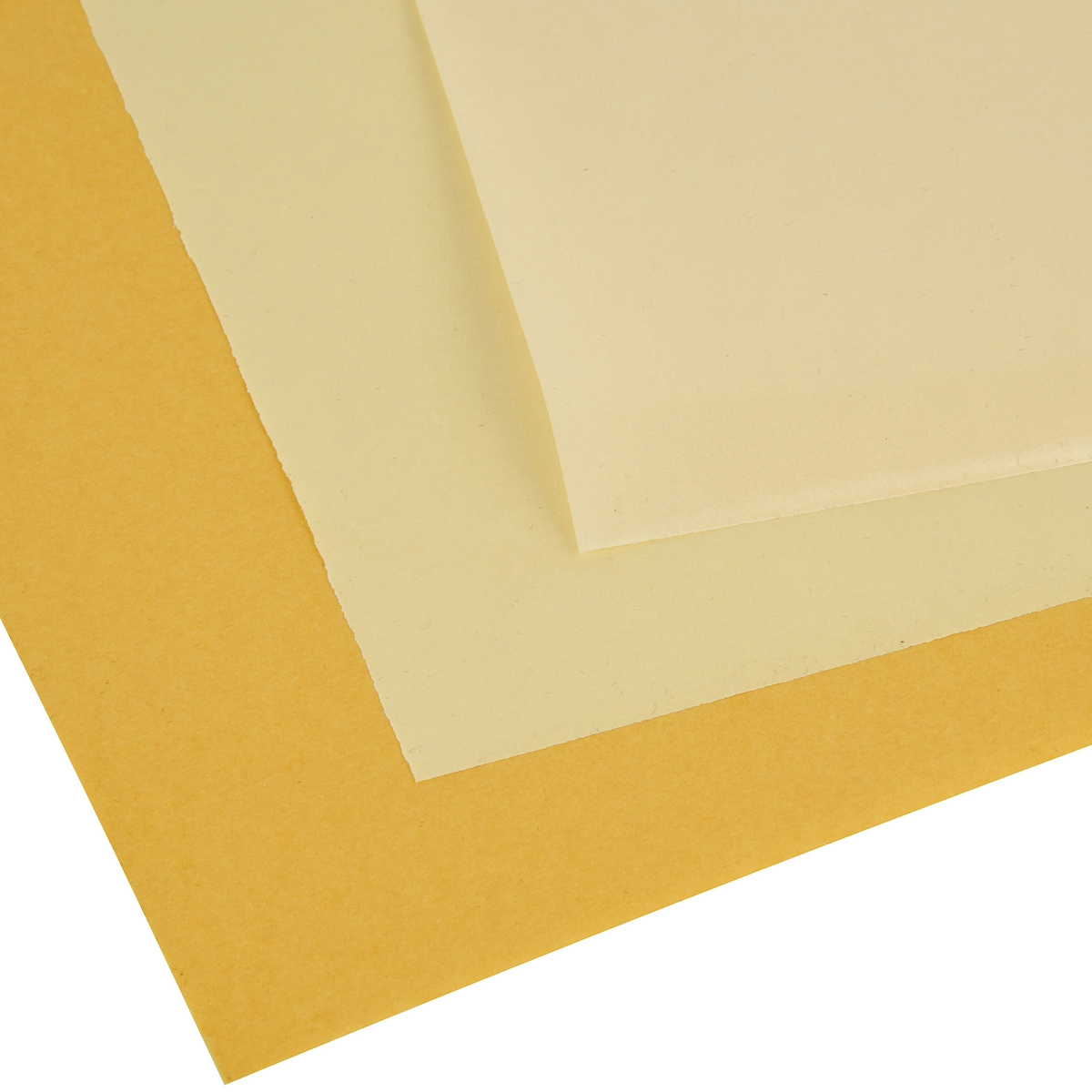

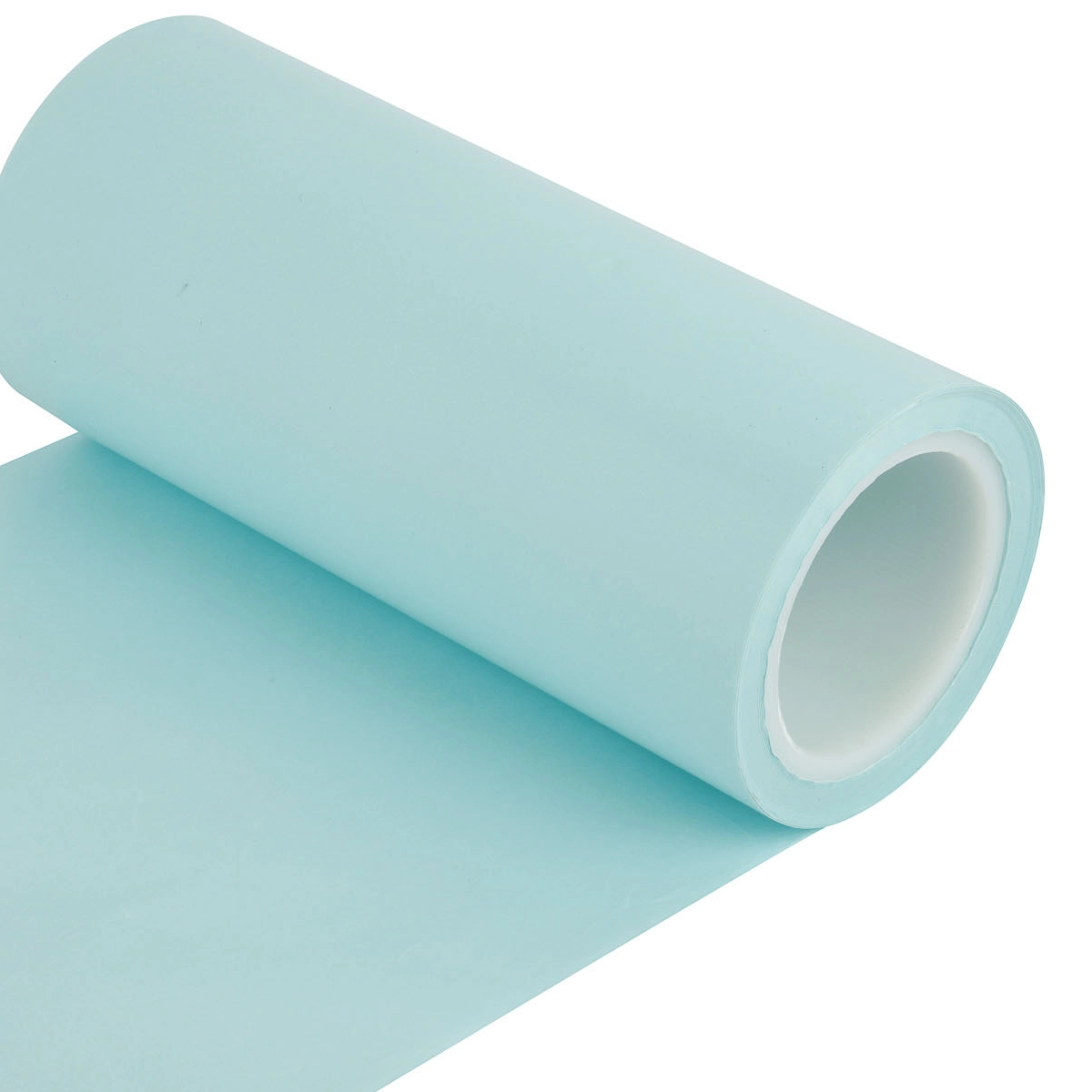

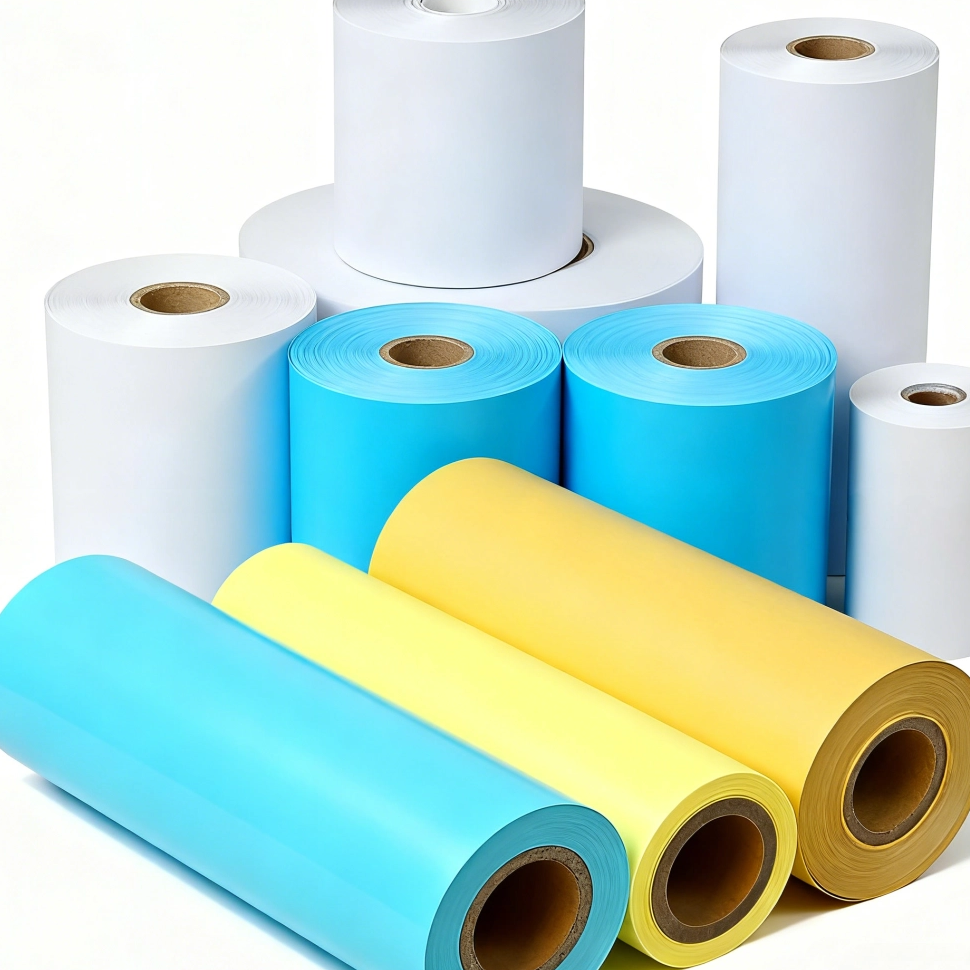

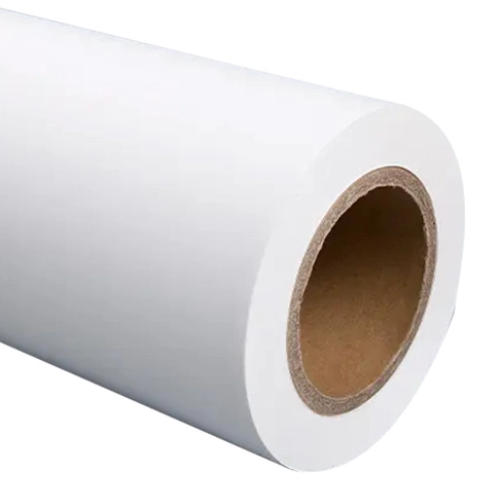

50gsm silicone-coated glassine release paper
50gsm silicone-coated glassine release paper 50gsm silicone-coated glassine release paper
50gsm Glassine Release Paper 50gsm Glassine Release Paper

loading

50gsm Glassine Release Paper

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
50gsm glassine reels for comparing label-web registration and applicator handling.

  • Glassine Release Paper

  • Roll

  • 50gsm

  • White/Blue/Yellow/Havana/Honey

  • Silicone Coated

  • Wood Pulp

  • Labels

Availability:
Inquire

50gsm Glassine Release Paper Blue Glassine Release Paper Glassine Release Paper White Blue Glassine Release Paper Yellow Glassine Release Paper Havana Glassine Release Paper
Overview
Specifications
Product Guide
FAQs
Product Overview
50gsm Glassine Release Paper provides a compact paper support for label and sticker constructions. HENGMU combines the glassine backing with a silicone release interface, keeping paper dimensions and adhesive separation as distinct specification requirements. Buyers replacing an existing liner should consider registration, waste stripping and applicator handling across the complete web. Color and any visibility requirement should be defined for the supplied sample rather than inferred from the glassine material name.
  • Compact glassine provides the paper support for adhesive conversion.
  • The 50gsm grade has separate thickness and directional-strength data.
  • Color choice can follow the required inspection or detection task.
  • Reel width is specified for the intended label web.



Key Specifications

Item

Specification

Product Type

Glassine Release Paper

Basis Weight

50 ± 2 g/m² | ISO 536

Thickness

43 ± 5 μm | ISO 534

Base Paper

Glassine paper

Material Structure

Glassine base paper / solventless silicone

Color

White / yellow / honey / Havana / blue; availability by configuration

Form

Reels

Release Coating

Solventless silicone

Coating Sides

Identify the ordered release face or faces in the quotation

Available Width

Specify required slit width, tolerance and roll format in the inquiry

Release Force

Select an adhesive-specific target and test method; release levels are not assigned by weight or thickness

Tensile Strength

MD ≥45 / CD ≥25 N/15mm | ISO 1924-2

Tearing Strength

MD ≥180 / CD ≥200 mN | ISO 1974

Transparency / Translucency

Inspect the selected color and actual sample; no numerical optical limit stated

Printability

Gravure / flexo listed; confirm print face and ink system

Die-cutting Performance

Validate die-cut depth, matrix stripping and dispensing on the intended line



  • Applications
    Assess 50gsm glassine for self-adhesive labels and stickers. Trial registration, matrix removal and applicator performance at production width; evaluate visibility in the chosen colour.
  • Customization
    Define web width, core, reel diameter and paper colour. Include registration or printed-mark needs, winding direction and the adhesive-specific release target for the proposed label construction.
  • Selection Guide
    Compare 50gsm and 58gsm with the actual label geometry. Track lateral movement, matrix removal and applicator stops under equivalent settings before ordering a longer trial reel.
  • Quality & Documents
    Obtain 50gsm glassine technical data and agree registration and release acceptance criteria. Retain trial settings and roll references for comparison with repeat production.
  • Packaging & Delivery
    Minimum order: 1 metric ton; shipment within one month. State the intended slit width and reel build when confirming protection, pallet loading and destination.
  • Technical Support
    Get a 50gsm label-liner quote. Provide the current backing, registration issue, adhesive, release-test method, paper colour, web format, trial volume and delivery location.
  • Applications
    Assess 50gsm glassine for self-adhesive labels and stickers. Trial registration, matrix removal and applicator performance at production width; evaluate visibility in the chosen colour.
  • Customization
    Define web width, core, reel diameter and paper colour. Include registration or printed-mark needs, winding direction and the adhesive-specific release target for the proposed label construction.
  • Selection Guide
    Compare 50gsm and 58gsm with the actual label geometry. Track lateral movement, matrix removal and applicator stops under equivalent settings before ordering a longer trial reel.
  • Quality & Documents
    Obtain 50gsm glassine technical data and agree registration and release acceptance criteria. Retain trial settings and roll references for comparison with repeat production.
  • Packaging & Delivery
    Minimum order: 1 metric ton; shipment within one month. State the intended slit width and reel build when confirming protection, pallet loading and destination.
  • Technical Support
    Get a 50gsm label-liner quote. Provide the current backing, registration issue, adhesive, release-test method, paper colour, web format, trial volume and delivery location.
FAQs
  • Can I set my machine tension from the tensile-strength figure?
    加 Created with Sketch.
    形状 Created with Sketch.
    No. The MD/CD minima describe a material test, not a recommended running tension. Set up the complete web using the equipment requirements and validate breaks, stretching and registration in a controlled trial.
  • Is 50gsm a direct replacement for 58gsm glassine?
    加 Created with Sketch.
    形状 Created with Sketch.
    The listed calipers are 43 ± 5μm and 50 ± 5μm respectively. Review the change with the adhesive build, cutting tools and dispensing arrangement; equal release targets do not make the backings interchangeable.
  • 50gsm Glassine: How should I assess a move from my current liner?
    加 Created with Sketch.
    形状 Created with Sketch.
    Keep the existing material as a control and record actual differences in coating and dimensions. Trial the finished construction under consistent conditions before accepting the new grade.
  • 50gsm Glassine: Does the product name confirm the number of release faces?
    加 Created with Sketch.
    形状 Created with Sketch.
    The name may not specify the complete coating configuration. Obtain the material construction and mark each adhesive-facing surface in the inquiry and roll drawing.
