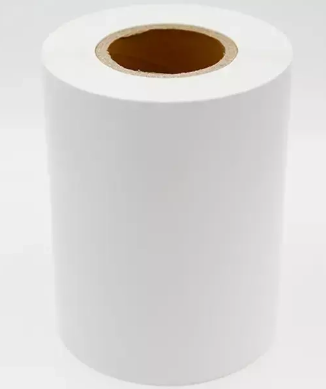

120gsm silicone-coated glassine release paper

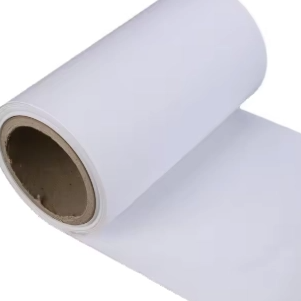

120gsm Glassine Release Paper

Product Name:
Glassine Release Paper
Size:
Roll
Specification:
120gsm
Color:
White
Release Agent:
Silicone Coated
Base Paper Type:
Wood Pulp
Applications:
Medical/Construction/Industry/Tape/Electronic

Availability:



Inquire

120gsm Glassine Release Paper 120gsm glassine release liner Glassine Silicone Release Paper

Overview

Specifications

Product Guide

FAQs

Product Overview

120gsm Glassine Release Paper is the upper-weight glassine model in HENGMU's supplied technical range. Its dense paper backing and silicone release interface can be assessed for labels, tapes or industrial adhesive constructions that call for the corresponding dimensions. Moving from a lighter liner affects the complete roll and converting setup, so the model should be chosen for a defined backing requirement. Agree color, coating configuration and the required adhesive separation with the quotation.

The upper HMG weight has grade-specific thickness and strength data.
Dense paper provides the backing beneath the silicone layer.
The requested roll build can account for the heavier liner.
Coating orientation can follow the actual laminate-removal sequence.

Key Specifications

Item	Specification
Product Type	Glassine Release Paper
Basis Weight	120 ± 6 g/m² \| ISO 536
Thickness	98 ± 5 μm \| ISO 534
Base Paper	Glassine paper
Material Structure	Glassine base paper / solventless silicone
Color	White / yellow / honey / Havana / blue; availability by configuration
Form	Reels
Release Coating	Solventless silicone
Coating Sides	Identify the ordered release face or faces in the quotation
Available Width	Specify required slit width, tolerance and roll format in the inquiry
Release Force	Select an adhesive-specific target and test method; release levels are not assigned by weight or thickness
Tensile Strength	MD ≥90 / CD ≥60 N/15mm \| ISO 1924-2
Tearing Strength	MD ≥550 / CD ≥650 mN \| ISO 1974
Transparency / Translucency	Inspect the selected color and actual sample; no numerical optical limit stated
Printability	Gravure / flexo listed; confirm print face and ink system
Die-cutting Performance	Validate die-cut depth, matrix stripping and dispensing on the intended line

Applications

Consider 120gsm glassine for labels, tapes or industrial adhesive products needing this backing specification. Test waste stripping and removal around the actual peel edge with the complete laminate.
Customization

Define the required backing dimensions and reel capacity before selecting roll length. Specify colour, winding and release behaviour with the adhesive and converting conditions for review.
Selection Guide

Review 120gsm caliper against die settings and reel capacity. Compare a 90gsm option only where dimensions permit, then qualify cutting and removal on the finished adhesive product.
Quality & Documents

Request the 120gsm glassine specification and relevant backing test results. Preserve die settings, peel-path observations and roll identification with the qualified heavier-liner construction.
Packaging & Delivery

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
Technical Support

Request a 120gsm backing comparison. Explain the dimensional requirement and provide adhesive, release-test conditions, die setup, reel capacity, order quantity and receiving destination.

Applications

Consider 120gsm glassine for labels, tapes or industrial adhesive products needing this backing specification. Test waste stripping and removal around the actual peel edge with the complete laminate.
Customization

Define the required backing dimensions and reel capacity before selecting roll length. Specify colour, winding and release behaviour with the adhesive and converting conditions for review.
Selection Guide

Review 120gsm caliper against die settings and reel capacity. Compare a 90gsm option only where dimensions permit, then qualify cutting and removal on the finished adhesive product.
Quality & Documents

Request the 120gsm glassine specification and relevant backing test results. Preserve die settings, peel-path observations and roll identification with the qualified heavier-liner construction.
Packaging & Delivery

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
Technical Support

Request a 120gsm backing comparison. Explain the dimensional requirement and provide adhesive, release-test conditions, die setup, reel capacity, order quantity and receiving destination.

FAQs

Is 120gsm glassine roughly 120 microns thick?

The HMG reference is 98 ± 5μm, not 120μm. State both the 120 ± 6 g/m² basis-weight requirement and the thickness requirement when comparing offers.
Do I need to reset the die when moving from 90gsm?

Review the setup because the listed caliper changes from 75 ± 5μm to 98 ± 5μm. Establish cutting depth on the assembled label web and inspect liner damage before increasing run length.
120gsm Glassine: Is it enough to match the quoted nominal specification?

Also check the actual construction, dimensions and operating requirements. Confirm the candidate through the appropriate product and process tests before treating the nominal match as acceptable supply.
120gsm Glassine: Who should confirm the adhesive-facing construction?

The buyer and supplier should agree the material stack and contact surfaces together. Use that description consistently in the sample request, validation record and production order.
