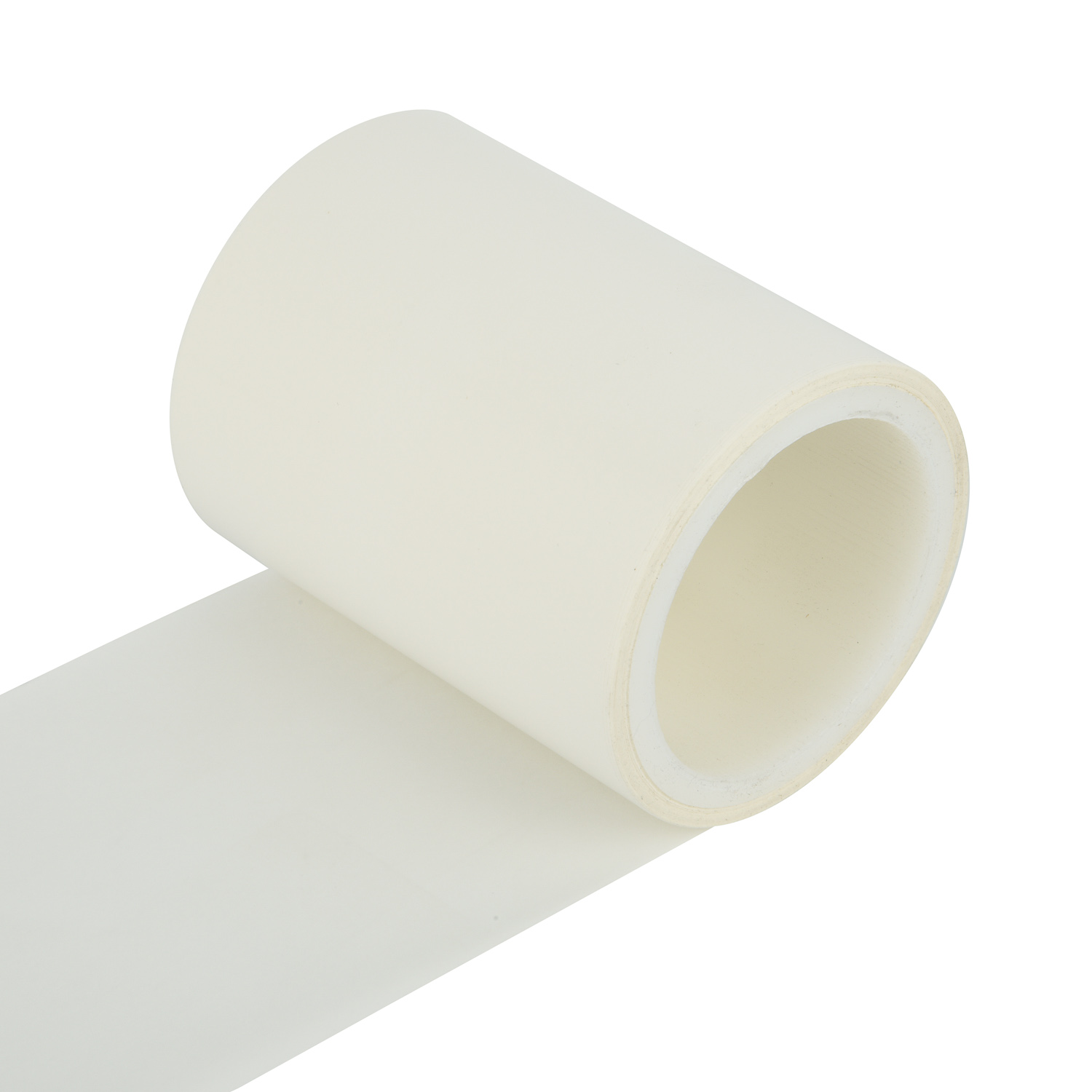

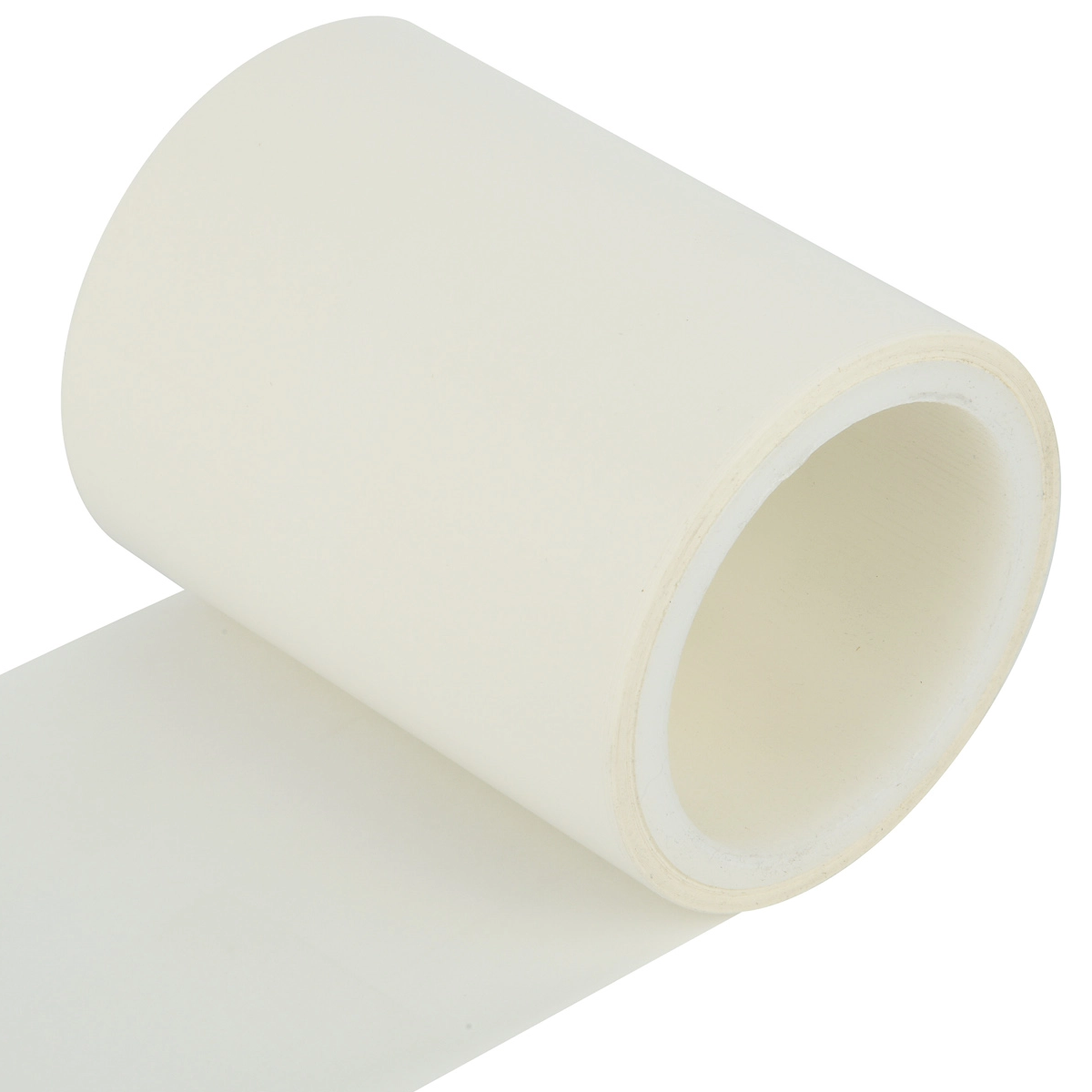

90gsm CCK Release Paper

A white 90gsm CCK liner for die-cut label, tape and adhesive-component enquiries.

Product Name:
CCK Release Paper
Size:
Roll
Specification:
90gsm
Color:
White
Transparency:
Opaque
Release Agent:
Clay Coated
Base Paper Type:
Wood Pulp
Applications:
Label/Medical/Construction/Industry/Textile

Availability:



Inquire

90gsm CCK Release Paper 90gsm CCK release liner Clay Coated Kraft Release Paper

Overview

Specifications

Product Guide

FAQs

Product Overview

HENGMU 90gsm CCK Release Paper provides a clay-coated kraft backing for pressure-sensitive adhesive constructions. The white reel material incorporates a solventless silicone release surface and can be assessed for labels, tapes and industrial adhesive components. For a die-cut product, the liner specification needs to account for the backing beneath the cut as well as separation from the adhesive. Discuss the finished component, converting route and release requirement with HENGMU to select the appropriate coating configuration and sample format.

A clay barrier separates the kraft substrate from the silicone interface.
The 90gsm backing has its own caliper and strength specification.
Reel supply supports a defined label or adhesive-part trial.
Release selection can be matched to cutting and dispensing requirements.

Key Specifications

Item	Specification
Product Type	CCK Release Paper
Basis Weight	90 ± 4 g/m² \| ISO 536
Thickness	90 ± 5 μm \| ISO 534
Base Paper	Clay-coated kraft paper
Material Structure	Base paper / clay coating / solventless silicone
Color	White
Form	Reels
Release Coating	Solventless silicone
Coating Sides	Identify the ordered release face or faces in the quotation
Available Width	Specify required slit width, tolerance and roll format in the inquiry
Release Force	Select an adhesive-specific target and test method; release levels are not assigned by weight or thickness
Tensile Strength	MD ≥65 / CD ≥40 N/15mm \| ISO 1924-2
Tearing Strength	MD ≥270 / CD ≥320 mN \| ISO 1974
Residual Adhesion	≥70% \| FTM 11, 31B tape, 70°C / 20 h

Applications

Evaluate 90gsm CCK for die-cut labels, tapes and adhesive parts. Inspect blade penetration, waste stripping and liner removal at production width; include storage conditions for tape projects.
Customization

Provide the existing liner specification and desired change. Define slit width, roll build, release faces and mandatory tolerances so HENGMU can review the proposed replacement.
Selection Guide

Trial 90gsm CCK with the smallest label or part geometry. Compare cut depth, matrix removal and handling against the current backing using consistent tooling and adhesive.
Quality & Documents

Retain the 90gsm technical specification, approved sample and production-roll identity together. Agree traceability and inspection requirements covering the die-cut construction selected for supply.
Packaging & Delivery

Orders start at 1 metric ton, with shipment within one month. Agree reel dimensions, destination, protective wrapping and pallet arrangement against your handling limits.
Technical Support

Request 90gsm CCK sample review. Supply the adhesive, cutting pattern, release method, contact face, roll drawing, trial quantity and destination, together with any mandatory inspection requirements.

Applications

Evaluate 90gsm CCK for die-cut labels, tapes and adhesive parts. Inspect blade penetration, waste stripping and liner removal at production width; include storage conditions for tape projects.
Customization

Provide the existing liner specification and desired change. Define slit width, roll build, release faces and mandatory tolerances so HENGMU can review the proposed replacement.
Selection Guide

Trial 90gsm CCK with the smallest label or part geometry. Compare cut depth, matrix removal and handling against the current backing using consistent tooling and adhesive.
Quality & Documents

Retain the 90gsm technical specification, approved sample and production-roll identity together. Agree traceability and inspection requirements covering the die-cut construction selected for supply.
Packaging & Delivery

Orders start at 1 metric ton, with shipment within one month. Agree reel dimensions, destination, protective wrapping and pallet arrangement against your handling limits.
Technical Support

Request 90gsm CCK sample review. Supply the adhesive, cutting pattern, release method, contact face, roll drawing, trial quantity and destination, together with any mandatory inspection requirements.

FAQs

Will 90gsm CCK stop my liner from being cut through?

Cut-through depends on tooling, pressure, laminate thickness and setup as well as the backing. Trial the 90 ± 5μm liner with your finished construction and inspect cut depth before approving a production run.
Which strength figure matters for the way my web runs?

The technical minima are MD 65 and CD 40 N/15mm. Identify the running direction and assess both values against tension, slitting and handling requirements; neither figure is a recommended machine tension.
90gsm CCK: Is approval of another weight enough to approve this one?

Approval belongs to the actual configuration tested. Review the dimensional and coating differences, then confirm the relevant converting and end-use results for the proposed grade.
90gsm CCK: How can I avoid using the wrong liner face?

Agree surface labels and an unwind convention before the trial. The sample, technical specification and purchase instructions should all identify the same adhesive-contact arrangement.
