130gsm silicone-coated CCK release paper

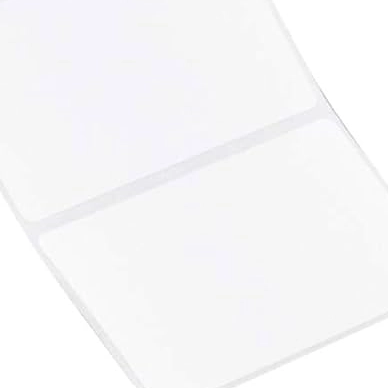

130gsm CCK Release Paper

White 130gsm CCK reels specified around backing dimensions, release and equipment fit.

Product Name:
CCK Release Paper
Size:
Roll
Specification:
130gsm
Color:
White
Transparency:
Opaque
Release Agent:
Clay Coated
Base Paper Type:
Wood Pulp
Applications:
Label/Medical/Construction/Industry/Textile

Availability:



Inquire

130gsm CCK release paper 130gsm CCK release liner Clay Coated Kraft Release Paper

Overview

Specifications

Product Guide

FAQs

Product Overview

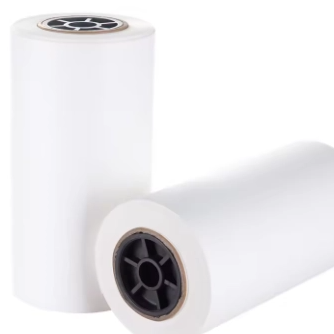

The HENGMU 130gsm CCK liner uses a kraft substrate, clay barrier and solventless silicone treatment. Supplied in white reels, it gives buyers a distinct backing option when reviewing tape or industrial adhesive conversion. Roll length, core and finished diameter should be considered together with the material's actual caliper, rather than ordered from gsm alone. Define the required adhesive separation and the line's handling limits when comparing this grade with an existing liner.

The 130gsm model offers a separate dimensional CCK reference.
Backing thickness can be considered with reel length and diameter.
MD/CD tear limits provide material data for slit-edge reviews.
A specified contact face connects the coating with the winding layout.

Key Specifications

Item	Specification
Product Type	CCK Release per
Basis Weight	130 ± 6 g/m² \| ISO 536
Thickness	125 ± 5 μm \| ISO 534
Base Paper	Clay-coated kraft paper
Material Structure	Base paper / clay coating / solventless silicone
Color	White
Form	Reels
Release Coating	Solventless silicone
Coating Sides	Identify the ordered release face or faces in the quotation
Available Width	Specify required slit width, tolerance and roll format in the inquiry
Release Force	Select an adhesive-specific target and test method; release levels are not assigned by weight or thickness
Tensile Strength	MD ≥85 / CD ≥45 N/15mm \| ISO 1924-2
Tearing Strength	MD ≥350 / CD ≥400 mN \| ISO 1974
Residual Adhesion	≥70% \| FTM 11, 31B tape, 70°C / 20 h

Applications

Assess 130gsm CCK for tape laminating and industrial liners where roll dimensions matter. Check running length, slit edges and adhesive separation within the machine's diameter limit.
Customization

Submit the unwinder limits, required length, slit width and core dimensions. Add release-face orientation and adhesive test requirements; obtain confirmation of the complete roll configuration.
Selection Guide

Compare 130gsm with 137gsm using caliper and reel capacity. Check core fit, running length and slit-edge condition in a representative adhesive-laminate trial before substitution.
Quality & Documents

Request 130gsm backing data and the inspection requirements for the trial reel. Keep accepted dimensions, edge condition and roll identifiers with the sample approval record.
Packaging & Delivery

MOQ is 1 metric ton; shipment is within one month. Match the packing plan to the approved core, reel diameter and receiving-site handling equipment.
Technical Support

Ask for a 130gsm roll-format quotation. Send the unwinder drawing, adhesive, release specification and method, slit width, running length, trial quantity and receiving location.

Applications

Assess 130gsm CCK for tape laminating and industrial liners where roll dimensions matter. Check running length, slit edges and adhesive separation within the machine's diameter limit.
Customization

Submit the unwinder limits, required length, slit width and core dimensions. Add release-face orientation and adhesive test requirements; obtain confirmation of the complete roll configuration.
Selection Guide

Compare 130gsm with 137gsm using caliper and reel capacity. Check core fit, running length and slit-edge condition in a representative adhesive-laminate trial before substitution.
Quality & Documents

Request 130gsm backing data and the inspection requirements for the trial reel. Keep accepted dimensions, edge condition and roll identifiers with the sample approval record.
Packaging & Delivery

MOQ is 1 metric ton; shipment is within one month. Match the packing plan to the approved core, reel diameter and receiving-site handling equipment.
Technical Support

Ask for a 130gsm roll-format quotation. Send the unwinder drawing, adhesive, release specification and method, slit width, running length, trial quantity and receiving location.

FAQs

Can I keep the same roll length when changing to 130gsm?

Confirm it from the actual caliper, core and maximum outside diameter. The 125 ± 5μm specification helps plan the reel, but winding, length tolerance and equipment limits must be agreed with the supplier.
Is 130gsm automatically stiffer than every lighter CCK grade?

No stiffness value is given in the supplied HMCCK sheet. Use the listed dimensions and strength as separate references, and request a stiffness method and sample comparison if bending behaviour determines your choice.
130gsm CCK: What evidence supports a replacement recommendation?

Use a documented comparison of the current and proposed constructions, followed by relevant trials. A similar catalog designation alone does not demonstrate equivalent processing or finished-product performance.
130gsm CCK: Should the reverse side be part of the inquiry?

Include any reverse-face adhesive contact, marking or handling requirement. Ask for confirmation of the full coating construction and show its orientation in the requested roll.
