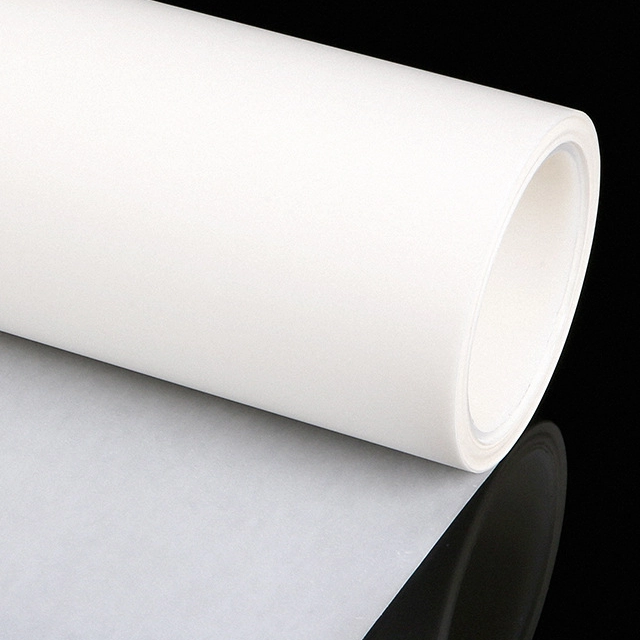

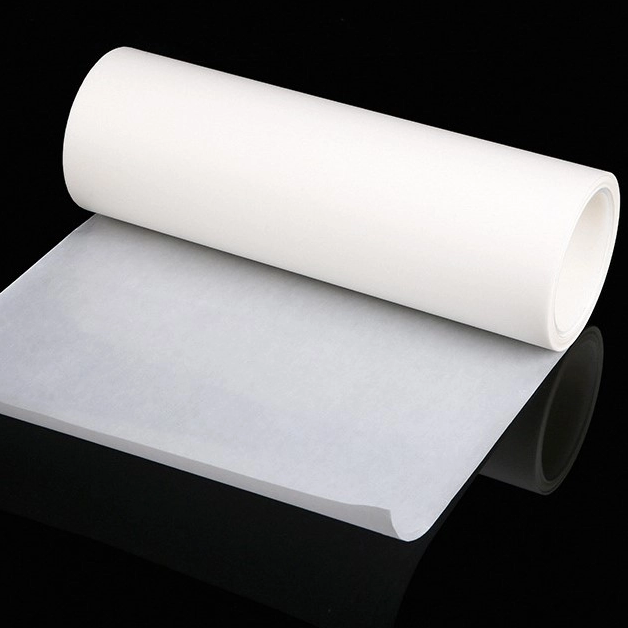

60gsm CCK Release Paper

White 60gsm CCK reels for evaluating a lighter backing in label and tape constructions.

Product Name:
CCK Release Paper
Size:
Roll
Specification:
60gsm
Color:
White
Transparency:
Opaque
Release Agent:
Clay Coated
Base Paper Type:
Wood Pulp
Applications:
Label/Medical/Construction/Industry/Textile

Availability:



Inquire

60gsm CCK Release Paper 60gsm CCK release liner Clay Coated Kraft Release Paper

Overview

Specifications

Product Guide

FAQs

Product Overview

HENGMU 60gsm CCK Release Paper is a white clay-coated kraft liner with a solventless silicone release surface. This lower-weight CCK option can be considered for pressure-sensitive labels and tapes when paper consumption is part of the purchasing brief. The kraft backing, clay barrier and silicone interface have separate roles in the adhesive construction. Select the liner against usable converting output and the required separation behaviour, with the coated face and reel format specified for the order.

White clay-coated kraft construction with a solventless silicone surface.
The 60gsm option provides a lower-weight CCK backing comparison.
Defined MD/CD properties support direction-specific material selection.
Reel dimensions can be specified around accepted converting output.

Key Specifications

Item	Specification
Product Type	CCK Release Paper
Basis Weight	60 ± 3 g/m² \| ISO 536
Thickness	60 ± 5 μm \| ISO 534
Base Paper	Clay-coated kraft paper
Material Structure	Base paper / clay coating / solventless silicone
Color	White
Form	Reels
Release Coating	Solventless silicone
Coating Sides	Identify the ordered release face or faces in the quotation
Available Width	Specify required slit width, tolerance and roll format in the inquiry
Release Force	Select an adhesive-specific target and test method; release levels are not assigned by weight or thickness
Tensile Strength	MD ≥50 / CD ≥30 N/15mm \| ISO 1924-2
Tearing Strength	MD ≥180 / CD ≥220 mN \| ISO 1974
Residual Adhesion	≥70% \| FTM 11, 31B tape, 70°C / 20 h

Applications

Consider 60gsm CCK for labels and tapes where lower paper weight is required. Check die-cutting, web breaks and release with the intended adhesive; medical or hygiene use needs separate review.
Customization

Specify slit width, roll length, core, maximum diameter and winding direction. Identify the adhesive-contact face and release target, including test conditions; HENGMU will review feasible options.
Selection Guide

Compare 60gsm and 80gsm CCK under unchanged adhesive and tooling conditions. Review caliper, liner damage, stoppages and cost per accepted square metre before choosing the lighter backing.
Quality & Documents

Request the 60gsm CCK technical sheet and sample inspection criteria. Keep incoming-material, coating and finished-roll records linked to the material approved for your label or tape trial.
Packaging & Delivery

MOQ: 1 metric ton. Shipment within one month. Provide roll dimensions and destination so protective wrapping and pallet layout can be agreed for the ordered format.
Technical Support

Request a 60gsm CCK trial quote. Send the end product, adhesive, release target and method, roll dimensions, quantity and destination; include the current liner specification for comparison.

Applications

Consider 60gsm CCK for labels and tapes where lower paper weight is required. Check die-cutting, web breaks and release with the intended adhesive; medical or hygiene use needs separate review.
Customization

Specify slit width, roll length, core, maximum diameter and winding direction. Identify the adhesive-contact face and release target, including test conditions; HENGMU will review feasible options.
Selection Guide

Compare 60gsm and 80gsm CCK under unchanged adhesive and tooling conditions. Review caliper, liner damage, stoppages and cost per accepted square metre before choosing the lighter backing.
Quality & Documents

Request the 60gsm CCK technical sheet and sample inspection criteria. Keep incoming-material, coating and finished-roll records linked to the material approved for your label or tape trial.
Packaging & Delivery

MOQ: 1 metric ton. Shipment within one month. Provide roll dimensions and destination so protective wrapping and pallet layout can be agreed for the ordered format.
Technical Support

Request a 60gsm CCK trial quote. Send the end product, adhesive, release target and method, roll dimensions, quantity and destination; include the current liner specification for comparison.

FAQs

Will moving to 60gsm actually reduce my liner cost?

Compare cost per accepted square metre, including converting waste, freight and usable roll length. A lower price per roll or a lower gsm figure alone does not establish a saving.
What should I check before replacing an 80gsm CCK liner?

The listed caliper changes from 80 ± 5μm to 60 ± 5μm. Review tooling clearance, web tension and handling damage with an otherwise comparable adhesive construction.
60gsm CCK: Is the closest listed grade an automatic replacement?

A neighboring catalog entry is a comparison candidate. Check construction and measured dimensions, then validate the intended adhesive product before approving a substitution.
60gsm CCK: Which surface should touch my adhesive?

Identify the contact face in the construction and winding instructions. Ask HENGMU to confirm the coating arrangement for the quoted material instead of inferring it from the material family.
