In adhesive converting, label manufacturing, and specialty tape production, selecting the right release liner is a decision that impacts efficiency, product quality, and overall process stability. Two of the most widely used release liner types are MG Kraft release paper and glassine paper. While both serve the essential role of protecting adhesive surfaces and facilitating clean release, they possess distinct characteristics that make each suitable for different applications. Understanding these differences helps converters, product designers, and production engineers make informed choices that improve performance and reduce waste.
At Zhejiang Hengmu Composites Materials Co., Ltd., we work closely with manufacturers to match liner properties with production demands. Our MG Kraft release paper portfolio—available in 30gsm, 36gsm, 40gsm, and 50gsm weights with high-quality wood pulp and silicone coating—serves a range of industry needs. In this article, we’ll explore both materials in detail, comparing advantages, limitations, and real-world use cases, while highlighting factors to consider when choosing the better option for your production environment.
Before comparing MG Kraft and glassine papers, it’s important to understand the role of release liners in adhesive manufacturing. A release liner is a temporary carrier that protects the adhesive surface of tapes, labels, and other products until they are ready to be applied. A reliable liner must:
Provide consistent release force so the adhesive peels cleanly
Protect the adhesive surface from contamination or deformation
Withstand converting processes like die-cutting, slitting, rewinding, and printing
Maintain dimensional stability under different environmental conditions
Release liners are not merely packaging; they are precision materials that directly influence process stability, product usability, and overall quality. Choosing the wrong liner can cause machine jams, inconsistent adhesive behavior, and increased waste.

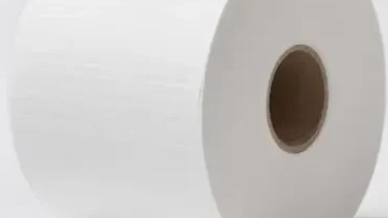

MG Kraft release paper is a machine-glazed kraft liner coated on one side with a silicone release layer. It has become a go-to material in industries such as labels, tapes, hygiene products, and specialty adhesive applications.
Key features include:
Machine-glazed smooth surface: Provides controlled release properties and support for printability.
High tensile strength: The kraft base offers robust mechanical performance, ideal for high-speed production.
Consistent release force: Predictable peel behavior improves process reliability.
Available in multiple weights: Options like 30gsm, 36gsm, 40gsm, and 50gsm allow customization based on product needs.
Printable surface: Suitable for flexographic or gravure printing for markings, instructions, or compliance labels.
MG Kraft release paper is engineered for high-performance converting, combining robustness with versatility. Its smooth yet strong base makes it well-suited for products requiring frequent handling, high-speed slitting, and demanding die-cutting.

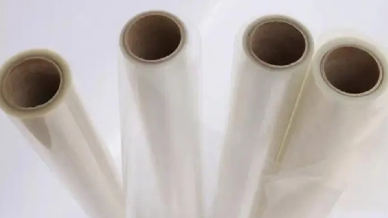

Glassine paper is a smooth, translucent paper made by intensive pressing and calendering, creating a dense, non-porous surface. It is widely recognized for its low absorbency and clean release characteristics.
Key features include:
Super smooth, glossy surface: Excellent for certain pressure-sensitive adhesives with minimal cohesive strength.
Non-porous structure: Helps prevent adhesive bleed-through.
Consistent release performance: Particularly effective for lightweight labels and tapes.
Translucent finish: Useful when visibility of the adhesive product underneath is important.
Glassine has long been used in applications such as:
Pressure-sensitive labels
Lightweight adhesive tapes
Silicone-coated films
Thin double-sided tapes
While glassine offers excellent surface characteristics, it may have limitations in mechanical strength and dimensional stability, particularly compared with thicker kraft-based papers.
Glassine paper possesses an exceptionally smooth, dense surface due to its calendered finish. This makes it ideal for adhesives that require a very clean contact surface with minimal drag. In label production, glassine often offers a visually appealing translucent liner that lays flat and feels smooth to the touch.
MG Kraft release paper, on the other hand, achieves smoothness through machine glazing combined with precision silicone coating. This creates a surface that balances smooth release with mechanical robustness. While glassine may technically be smoother, MG Kraft offers a surface that supports both consistent release and efficient printing, a combination many converters value.
Key Consideration:
Choose glassine when surface smoothness and translucency are critical.
Choose MG Kraft when balanced release, printability, and strength are required.
One of the most noticeable differences between MG Kraft and glassine papers is mechanical performance.
Glassine is inherently thin and smooth, but it lacks the mechanical strength of kraft-based liners. It can be prone to tearing during high-speed die-cutting or slitting, especially if the adhesive backing is aggressive. Additionally, glassine may exhibit dimensional changes (curl, warp, or stretch) under humid or variable temperature conditions, which can complicate automated handling and feeding systems.
MG Kraft’s wood pulp kraft foundation provides excellent tensile strength and tear resistance. This makes it suitable for high-speed converting lines and heavy-duty adhesive applications, where liner integrity is essential. The dimensional stability of kraft-based liners also helps maintain consistent web handling during winding, unwinding, and die-cutting operations.
Key Takeaway:
For robust production environments and heavy-duty applications, MG Kraft often outperforms glassine in mechanical stability.
For lightweight labels and low-stress applications, glassine can be suitable, but care must be taken in high-speed or automated systems.
Printing on release liners is common in label and adhesive applications. Markings may include brand logos, regulatory information, roll identification, or alignment guides. The choice of liner affects how well printing adheres and reproduces quality.
Glassine’s smooth, non-porous finish can be more challenging to print on without surface treatment. Some printers require additional coatings or surface energy adjustments to achieve acceptable ink adhesion and clarity.
MG Kraft release paper offers a surface that is easier to print on due to its machine-glazed finish and surface energy suited for common printing processes like flexography and gravure. This supports manufacturers who need printed liners without sacrificing release performance.
When base paper printability is a requirement—whether for branding or traceability—MG Kraft often has an advantage over untreated glassine surfaces.
In many adhesive applications, liners are exposed to heat and chemical interactions during lamination, adhesive activation, or processing.
Glassine exhibits a chemically stable surface for many PSA (pressure-sensitive adhesive) systems, which makes it useful for labels and tapes that do not undergo aggressive processing. However, glassine can be affected by solvents, moisture, or extended heat exposure, potentially leading to weakening of the liner.
MG Kraft release paper, with its silicone coating and kraft base, offers a degree of resistance to a broader range of adhesives and moderate thermal environments. While neither liner is intended for extreme thermal usage without specific formulation, MG Kraft’s composition provides a balance of chemical and thermal resistance that helps maintain release performance during typical converting processes.
Cost considerations often influence liner selection, especially in large-scale production settings. Glassine liners are traditionally perceived as economical and easy to source, particularly for lightweight products.
However, this perceived economy can be offset if process disruptions occur due to tearing, dimensional instability, or printing challenges. On high-speed lines, the cost of downtime—along with waste and rework—can outweigh initial material savings.
MG Kraft release paper may carry a slightly higher per-unit material cost in some grades, but many converters find that its process benefits, strength, and printability contribute to overall cost-effectiveness by reducing production issues and material waste.
Glassine release liners are well-suited for:
Lightweight pressure-sensitive labels
Thin, low-adhesion tapes
Products where translucency is desirable
Short-run production with minimal handling stress
Glassine can be ideal when surface smoothness and appearance are priorities and production environments are less demanding.
MG Kraft release paper is often the preferred choice for:
High-speed converting lines
Double-sided adhesives and heavy-duty tapes
Printed liners requiring clarity and adhesion
Applications where mechanical strength and dimensional stability matter
Products exposed to variable temperature or humidity
In these contexts, MG Kraft provides consistent release, robust handling, and surface quality that supports both production efficiency and product reliability.
Sustainability is becoming a strategic priority across industries. Both glassine and kraft papers derive from natural fibers, but their recyclability and lifecycle impacts vary.
Glassine’s dense, non-porous structure can make recycling more challenging unless it is clean and free from contaminants. MG Kraft release paper, with its wood pulp base and silicone coating, is often viewed as more easily integrated into existing paper recycling streams, provided that coating residues are managed appropriately.
Manufacturers conscious of sustainability goals may weigh recyclability, material sourcing, and end-of-life handling when selecting release liners, adding another dimension to the decision-making process.
Both MG Kraft release paper and glassine paper have earned their places in the adhesive, tape, and label industries. However, choosing the right liner depends on production needs, application requirements, and long-term performance considerations.
Glassine offers excellent smoothness and translucency for lightweight, non-demanding applications. MG Kraft release paper, with its balanced combination of smooth surface, mechanical strength, printability, and dimensional stability, often delivers superior performance in demanding, high-speed, and high-volume converting environments.
For converters and manufacturers seeking reliable MG Kraft release paper tailored to their production needs, Zhejiang Hengmu Composites Materials Co., Ltd. provides comprehensive solutions backed by material expertise and consistent product quality. Contact our team to discuss how the right liner can improve your manufacturing performance and product outcomes.
Q: What are the main differences between MG Kraft release paper and glassine paper?
A: MG Kraft is kraft-based with silicone coating for strength and printability, while glassine is dense, smooth, and translucent but less mechanically robust.
Q: Can glassine paper be used for high-speed converting?
A: Glassine can be used, but in high-speed or heavy-duty applications, its mechanical limitations may cause tearing or instability.
Q: Is MG Kraft release paper suitable for printed liners?
A: Yes, MG Kraft’s surface supports printing methods like flexography and gravure, allowing clear markings without affecting release.
Q: Which liner offers better dimensional stability?
A: MG Kraft release paper generally offers better dimensional stability than glassine, especially under variable production conditions.
