Choosing a release liner for adhesive tapes starts with four factors: substrate properties, adhesive compatibility, converting requirements and operating conditions. Paper and film liners offer different advantages, but neither is the best choice for every application.
The aim is to achieve stable processing and reliable removal while controlling the total cost of production.
Film liners, such as PET, are often considered when dimensional stability, consistent thickness, precision die-cutting or transparent registration is important.
For automated production, assess the film’s strength, web handling and release behaviour at the intended operating speed. High speed alone does not determine whether film is the right choice.

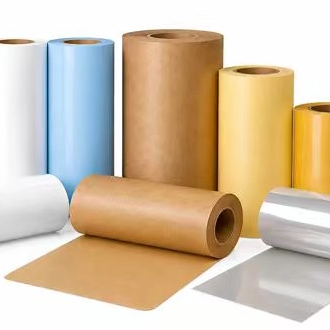

Paper liners may be suitable where cost control, stiffness or hand tearability is important. These properties depend on the paper grade and construction.
Glassine and PE-coated papers provide different combinations of surface properties, strength and moisture resistance. Select the specific grade against the converting process rather than treating all paper liners as interchangeable.
Adhesive compatibility determines whether the liner separates cleanly and consistently. Select the release coating and force range using the actual adhesive formulation and application conditions.
Silicone-coated paper and film liners are commonly considered for acrylic adhesives. Confirm the required release level through compatibility and ageing tests rather than assigning a fixed range to all acrylic formulations.
Evaluate clean separation, release stability and any adhesive transfer after storage. The appropriate release force depends on the adhesive formulation and tape construction; heavier release is not automatically better.
For hot-melt coating, check the liner’s suitability for the actual coating temperature and exposure time. Assess dimensional stability, silicone anchorage, release behaviour and subsequent adhesion.
“Hot-melt” describes the application method rather than a single adhesive chemistry, so it should not determine the release-force specification by itself.
Silicone pressure-sensitive adhesives typically require a compatible specialist liner, such as a fluorosilicone-coated liner. Conventional silicone-coated liners should not be assumed compatible, as blocking or difficult separation may occur.
These specialist release systems require separate assessment from conventional silicone-coated paper and film liners.
A release-force value is meaningful only with its test conditions. Specify the adhesive or test tape, peel angle, peel speed, conditioning and ageing conditions when comparing results.
Glassine paper and PET film may both be suitable, depending on the tape construction and equipment. Evaluate liner strength, thickness consistency, web tension and release behaviour at the intended production speed.
Select a liner with suitable thickness consistency and resistance to cut-through. PE-coated paper and film liners may be considered, but die settings and cutting depth must be validated with the complete construction.
Match release force to the tape or die-cut part, dispensing geometry and line speed. The liner should allow reliable separation without premature lifting, tearing or unstable feeding.
Assess release force alongside web tension, adhesive properties and storage conditions. The aim is to keep the construction stable while allowing controlled liner removal.
Paper liners require appropriate moisture protection during storage and transportation. PE-coated paper may be considered where increased moisture resistance is needed, while packaging and storage conditions remain important.
Evaluate release performance under the expected storage and operating temperatures. The effect of temperature depends on the adhesive–liner combination, so seasonal adjustments should be based on test results rather than a fixed winter or summer rule.
Compare liner purchase costs with processing speed, material waste, downtime, rework and customer complaints.
A lower-priced liner may cost more overall if it causes unstable converting or difficult removal. Trial the complete tape construction under the intended production and application conditions before confirming the specification.
