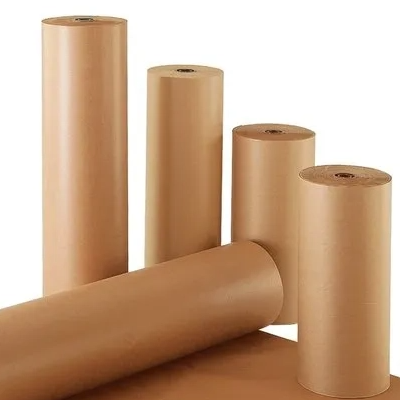

85gsm PCK Release Paper

85gsm PCK liner with separate paper, PE-barrier and silicone-contact requirements.

Product Name:
PCK Release Paper
Size:
Roll
Specification:
85gsm
Color:
White/Yellow/Browen
Transparency:
Opaque
Release Agent:
PE and Silicone Coated Coated
Base Paper Type:
Wood Pulp
Applications:
Label/Tape/Construction/Industry

Availability:



Inquire

85gsm pck release paper 85gsm PCK release liner PE coated kraft release liner

Overview

Specifications

Product Guide

FAQs

Product Overview

85gsm PCK Release Paper combines a paper backing, polyethylene barrier and silicone release surface. HENGMU's single-sided technical configuration provides the starting point for identifying this liner in label or tape projects. The PE layer and silicone treatment perform different functions, so each coated face should be shown in the order specification. Compare the complete construction with the current liner, including the required release behaviour and the reel geometry accepted by the converting line.

Paper, PE and silicone are separate layers in the liner.
The C1S caliper gives a dimensional reference beyond 85gsm.
Color selection forms part of the requested order configuration.
The adhesive-contact face can be identified in a layer drawing.

Key Specifications

Item	Specification
Product Type	PCK Release Paper
Basis Weight	85 ± 5 g/m² \| HMPCK C1S / ISO 536
Thickness	100 ± 10 μm \| HMPCK C1S / ISO 534
Base Paper	PE-coated kraft paper
Material Structure	Base paper / PE barrier layer / silicone release coating
Color	White / yellow / brown; select the order color
Form	Reels
Release Coating	Solventless silicone
Coating Sides	C1S configuration; identify the ordered PE and silicone faces
Available Width	Specify required slit width, tolerance and roll format in the inquiry
Release Force	Select an adhesive-specific target and test method; release levels are not assigned by weight or thickness
Tearing Strength	MD ≥250 / CD ≥300 mN \| C1S reference / ISO 1974
Residual Adhesion	≥70% \| FTM 11, 31B tape, 70°C / 20 h

Applications

Consider 85gsm PCK for label and tape constructions needing PE-coated paper. Assess curl and adhesive release after conditioning; define exposure and acceptance criteria when moisture resistance matters.
Customization

Identify the required PE-coated construction and release face. Specify reel dimensions, winding, adhesive and release-test conditions; add the intended moisture exposure for feasibility review.
Selection Guide

Compare the 85gsm and 95gsm C1S references by caliper and roll fit. Condition both laminates together, then assess curl and removal under the agreed moisture cycle.
Quality & Documents

Request the 85gsm C1S technical data and construction description. Keep conditioning results and sample identification with agreed acceptance limits for the adhesive laminate.
Packaging & Delivery

Minimum quantity: 1 metric ton. Dispatch within one month. Include roll dimensions and destination when agreeing protective packing for the PE-coated paper supply.
Technical Support

Request an 85gsm PCK sample assessment. Share the layer drawing, adhesive, moisture cycle, release target and method, roll format, quantity and planned delivery location.

Applications

Consider 85gsm PCK for label and tape constructions needing PE-coated paper. Assess curl and adhesive release after conditioning; define exposure and acceptance criteria when moisture resistance matters.
Customization

Identify the required PE-coated construction and release face. Specify reel dimensions, winding, adhesive and release-test conditions; add the intended moisture exposure for feasibility review.
Selection Guide

Compare the 85gsm and 95gsm C1S references by caliper and roll fit. Condition both laminates together, then assess curl and removal under the agreed moisture cycle.
Quality & Documents

Request the 85gsm C1S technical data and construction description. Keep conditioning results and sample identification with agreed acceptance limits for the adhesive laminate.
Packaging & Delivery

Minimum quantity: 1 metric ton. Dispatch within one month. Include roll dimensions and destination when agreeing protective packing for the PE-coated paper supply.
Technical Support

Request an 85gsm PCK sample assessment. Share the layer drawing, adhesive, moisture cycle, release target and method, roll format, quantity and planned delivery location.

FAQs

Is this an 85-micron liner because it is called 85gsm?

The supplied C1S reference lists 100 ± 10μm thickness at 85 ± 5 g/m². Order against both dimensions and confirm that the quoted layer configuration matches that technical reference.
Does C1S tell me which side has PE and which side has silicone?

An abbreviation without a layer description is insufficient for an order. Ask HENGMU to identify the PE-coated faces and silicone-treated faces separately, together with the adhesive-contact orientation.
85gsm PCK: Is the closest listed grade an automatic replacement?

A neighboring catalog entry is a comparison candidate. Check construction and measured dimensions, then validate the intended adhesive product before approving a substitution.
85gsm PCK: Which surface should touch my adhesive?

Identify the contact face in the construction and winding instructions. Ask HENGMU to confirm the coating arrangement for the quoted material instead of inferring it from the material family.
